Galvanized Anti-Slippery Serrated Surface Steel Bar Grating for Drain or Platform
Specification
1. The shape of bearing bar: Plain type (may be omitted in the symbol of steel grating), serrated type and I-Shape type
2. Bearing bar pitches can be 12.5, 15, 20, 30, 30.16, 32.5, 34.3, 40, 60mm, of which 30mm & 40mmare recommended.
3. Cross bar pitches can be 38, 50, 60,100mm, of which 50mm & 100mm are recommended.
4. Material: ASTM A36/SS235JR/SS400/Q235B
| Bearing Bar Spacing | Cross Bar Spacing | Bearing Bar Specification(Depth×Thickness) |
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 |
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
| 60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing Bar Spacing | Cross Bar Spacing | Bearing Bar Specification(Depth×Thickness) |
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 |
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Main Export Markets:
- Asia
- Australasia
- Central/South America
- Eastern Europe
- Mid East/Africa
- North America
- Western Europe
Questions:
1. Are you a manufacture?
Yes ,we have been in providing the products in this field for15 years.
2. Is customized available ?
Yes ,according to your detailed drawings you provide.
3. How many days will the samples be finished ?And how about the mass production ?
Generally the samples will be sent immediately by the air express in 3~5 days if the goods are in stock .Normally within 30 days or according to your order .
4. what’s the payment terms?
Usually 30 %as deposit .70%before shipment by T/T,western union acceptable for small account and L/C acceptable for large amount .
Steel grating advantages:
1. Lightweight, easy to install and clean-node
2. Material saving, slip-resistant and safe
3. Heavy loading and durable
4. Nice appearance, high strength, ventilation and light can pass through
Package of Grating:
Chenghe Products are packed and labeled according to the regulations and customer’s requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I.D. and quality information. Steel graitng product can be packed in wooden case or fixed by flat steel strip.

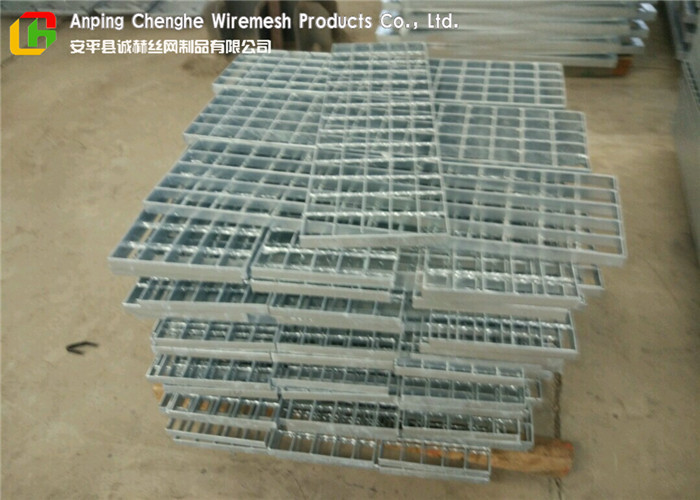

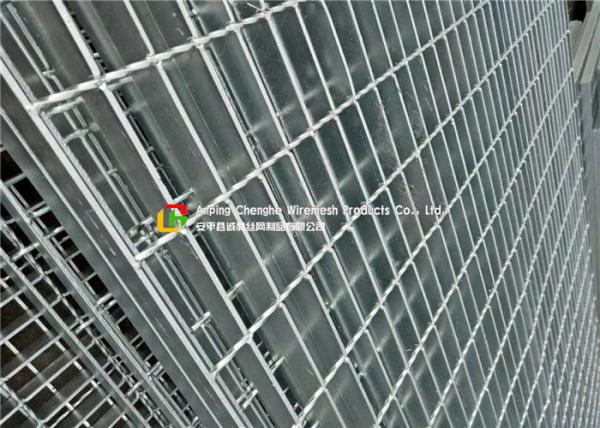

Product Picture
