Galvanized Serrated Steel Grating Anti - Skid Performance For Municipality

Name: Galvanized Serrated Steel Grating Anti Skid Performance For Municipality
Brand: CHENG HE
Price: 1 USD

Brand Name : CHENG HE

Model Number : A36 Q195 Q235 Q275 Q345 304 316 304L 316L

Certification : ISO9001

Place of Origin : HE BEI,CHINA

MOQ : 1pc

Payment Terms : D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100T/DAY

Delivery Time : 15-20 Days

Packaging Details : standard packing ,Bundle with metal pallet in Conatiners or as the customs requirement

Material : A36 Q195 Q235 Q275 Q345 304 316 304L 316L

Flat Bar : 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc

Name : Galvanized Serrated Steel Grating for Flooring , Stair Tread , Ditch Cover

Width : 25 Mm ,30 Mm, 32 Mm, 38 Mm,40mm As Your Request

Market : USA, AUS, UK, Kuwait, And So On

Contact Now

Galvanized Serrated Steel Grating for Flooring , Stair Tread , Ditch Cover

Description:

1) Mild carbon steel provides an economical, high strength for uses in most industrial and commercial applications.

2) steel bar : 25x5, 30x5, 45x5mm and so on

3) wire diameter : 6mm , 8mm and so on we can do as your demand

4) hole size : 25x50mm , 50x100mm , 100x 30mm and so on we can do as your demand

5) packing : iron pallet

6) surface treatment : PVC painting , galvanized , hot dipped galvanized

7) Style: plain,serrated,I-shape.

Common specifications:

Steel Grating Standard	Steel Standard	Galvanized Standard
China standard	YB/T 4001.1-2007	GB/T 13912-2002
USA standard	ANSI/NAAMM(MBG531)	ASTM(A123)
U.K.standard	BS4592	BS729
Australia standard	AS1657	AS1650

Product Name	Serrated Steel Grating
Material	Low Carbon Steel/Stainless Steel
Grade	CN:Q235,Q345, US:A36,UK:43A
Standard	CN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
Certification	CE, GOST, ISO9001, ISO14001, HSE
Bearing bar size	20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
Bearing bar pitch	20,25,30,32.5,34.3,40,50,60,62,65mm
Bearing bar type	Plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size	5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
Cross bar pitch	40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
Panel size	3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,7315x1000, as request
Surface treatment	Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.
Galvanization Standard	CN: GB/T13912, US: ASTM (A123), UK: BS729
Color	Silver/Black
Application	petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing

Features:

High strength, light structure: solid grid pressure welding structure has advantages of high load, light structure, easy installation, etc.
Fine appearance, durable in use: hot zinc dipping surface treatment makes it own fairly good corrosion resistance, bright and beautiful surface.
Good ventilation, lighting, thermal, anti-explosion, and anti-skid performance.
Prevent dirt deposition.

Our Services:

- We can provide free steel bar grating samples of small sizes, but customers need to pay the express cost.(This can be discussed)

- OEM is accepted. We have technical engineers. Then we can design steel bar grating for customers’

projects, and make

products according to customers’ drawing.

- Once receiving customers’ inquiries. Our company promises to provide services within 24 hours.


Galvanized Serrated Steel Grating Anti - Skid Performance For Municipality

Product Tags:

galvanized serrated grating

steel grid mesh flooring

China Galvanized Serrated Steel Grating Anti - Skid Performance For Municipality factory

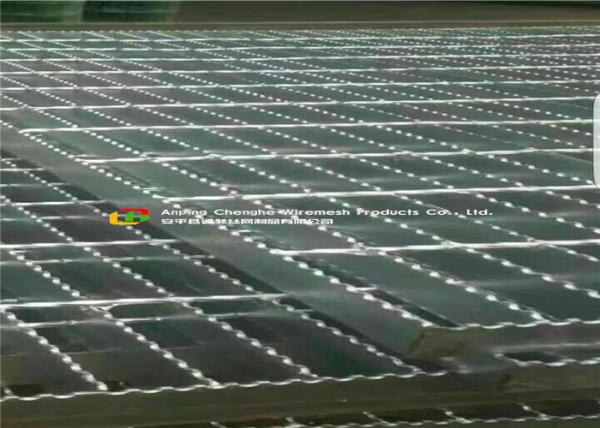

Galvanized Serrated Steel Grating Anti - Skid Performance For Municipality Images
